| Product Name | Dongfeng lightweight mini dump truck |
| Engine Model | Yuchai Diesel Engine |
| Fuel Type | Diesel |
| Emission Standard | EURO V/euro 5 |
| Gross vehicle weight (Kg) | 4125 |
| Curb Weight (Kg) | 2500 |
| Related loading Capacity (Kg) | 1495 |
| Alex Load Distribution (T) | 1.7T/2.425T |
24小时咨询热线
+86-16607287878（Wechat/WhatsApp）
| Overall Dimensions of the DONGFENG mini Dumper truck | |
| Overall length (mm) | 4625,4985,5035,5285,5525,5685,5835,5985,5450,5565,5650,5750 |
| Overall width (mm) | 2050,2200 |
| Overall height (mm) | 2200,2360,2230,2280,2300,2350 |
| Flatbed Cargo Body Dimensions (mm) | |
| Cargo body length (mm) | 2800,3100,3500,3800,4150,3300 |
| Cargo body width (mm) | 1900,2050 |
| Cargo body height (mm) | 450,550,600,800 |
| Engine Options For Dongfeng mini tipper truck (dump truck/Camion) | |
| Engine Type | Diesel |
| Model | Yuchai YCD4N4S-110 |
| Engine Power (Kw/hp) | 80/110 |
| Displacement (L) | 2.799 |
| Emission Standard | Euro 5 |
| Number of cylinders | 4 |

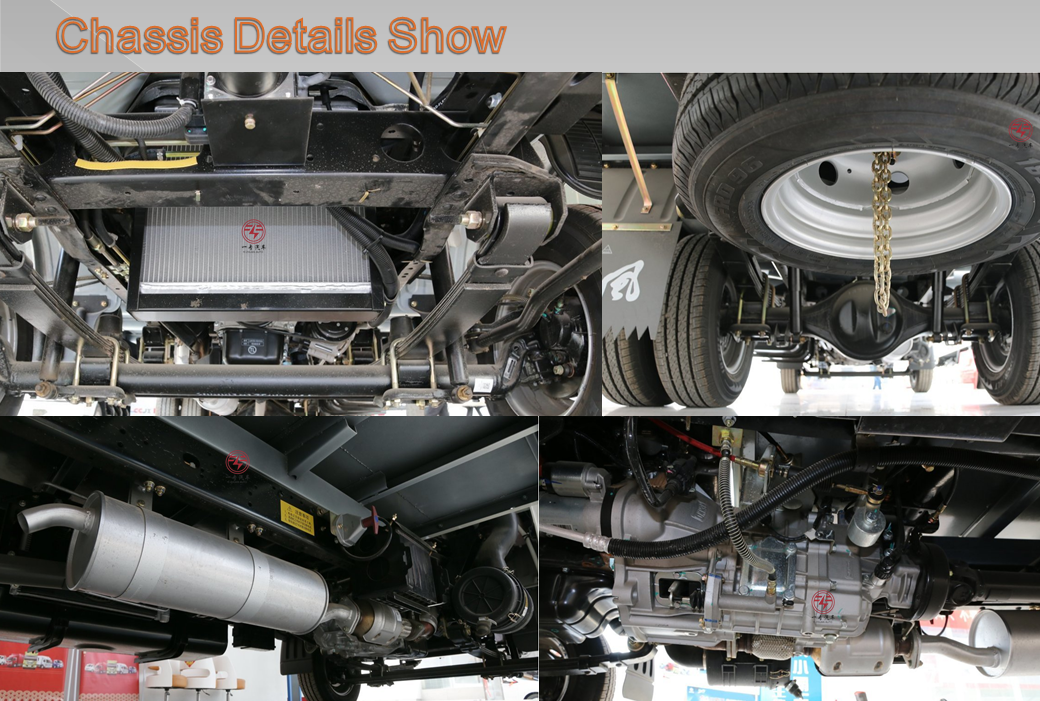

| Chassis Of DFAC T3 Chassis MINI SMALL TRUCK | |
| Wheelbase | 2500,2700,2800,2900,3150,3300 |
| Tires dimension | 7.00R16LT 8PR,7.50R16LT 6PR |
| Number of tires | 6+1 |
| Leaf spring | 2/3+2,6/6+5,8/10+7 |
| Frame Height (mm) | 140 mm |
| Gearbox/Transmission Technical datasheet | |
| Model | 5 gears, Manual |
| Number of gears | 5 forward gears, 1 reverse gear |
| Cab Of T5 mini flatbed cargo truck | |
| Cab Type | cab with sleeper |
| Number of passengers | 2 seats |
| Air conditioning | With |
| Multifunction steering-wheel | With |
| ABS | With |
