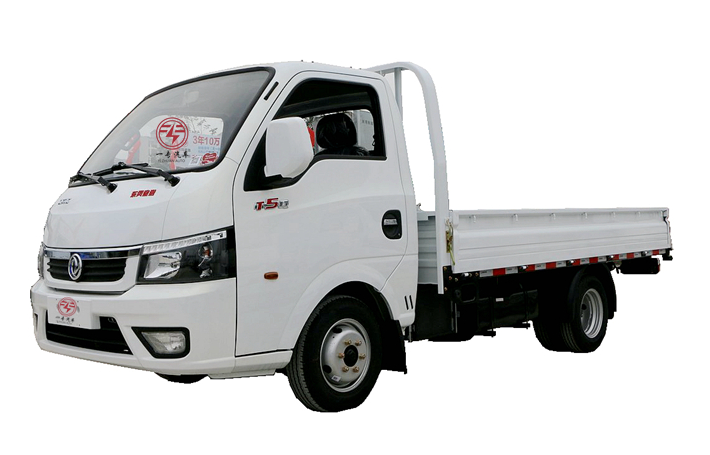

| Product Name | 4x2 DFAC Luxury light mini cargo truck |
| Engine Model | LJ4A15Q6/Q23-95E60 as options |
| Fuel Type Options | Gasoline / Diesel Fuel |
| Emission Standard | EURO V/euro 5 |
| Gross vehicle weight (Kg) | 3495 |
| Curb Weight (Kg) | 1820 |
| Related loading Capacity (Kg) | 1995 |
| Alex Load Distribution (T) | 1.3T/3T |
24小时咨询热线
+86-16607287878（Wechat/WhatsApp）
| Overall Dimensions of the DFAC T5 | ||
| Overall length (mm) | 5730 | |
| Overall width (mm) | 1945 | |
| Overall height (mm) | 2046 | |
| Flatbed Cargo Body Dimensions (mm) | ||
| Cargo body length (mm) | 2100; 2700; 3100; 3700; 3800 | |
| Cargo body width (mm) | 1830 | |
| Cargo body height (mm) | 355 | |
| Engine Options For Dongfeng T5 Single cab small mini truck (lorry/flatbed truck) | ||
| Engine Type | Gasoline/petrol Engine | Diesel Engine |
| Model | Wuling LJ4A15Q6 | Q23-95E60 |
| Engine Power (Kw/hp) | 83/113 | 70/95 |
| Displacement (L) | 1.499 | 2.3 |
| Emission Standard | Euro 5 | Euro V |
| Number of cylinders | 4 | 4 |
| Chassis Of DFAC T5 MINI SMALL TRUCK | ||
| Wheelbase | 2600; 2800; 3000; 3200 | |
| Tires dimension | 185R15LT 8PR | |
| Number of tires | 6+1 | |
| Beam | 140mm through beam | |
| Leaf spring | 3/5 | |
| Frame Height (mm) | 140 mm | |
| Gearbox/Transmission Technical datasheet | ||
| Model | Monvo 5 gears, Manual | |
| Number of gears | 5 forward gears, 1 reverse gear | |

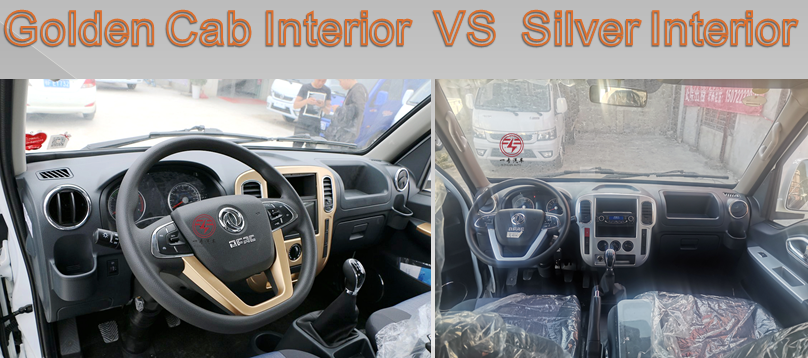

| Cab Of T5 mini flatbed cargo truck | ||
| Cab Type | luxury single / double cab | |
| Number of passengers | 2 seat5/ 5 seats | |
| Cab width (mm) | 1650 | |
| Air conditioning | With | |
| Multifunction steering-wheel | With | |
| ABS | With | |
| Market | Construction material transportation; Agricultural and sideline products transportation | |

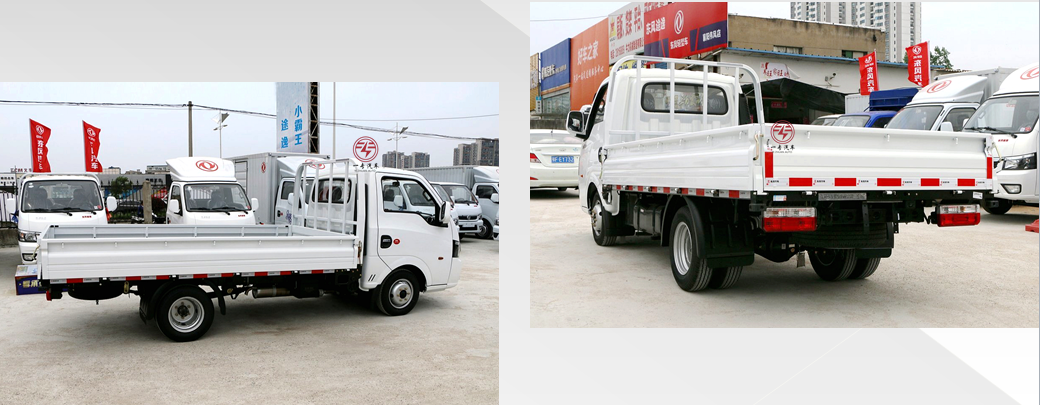

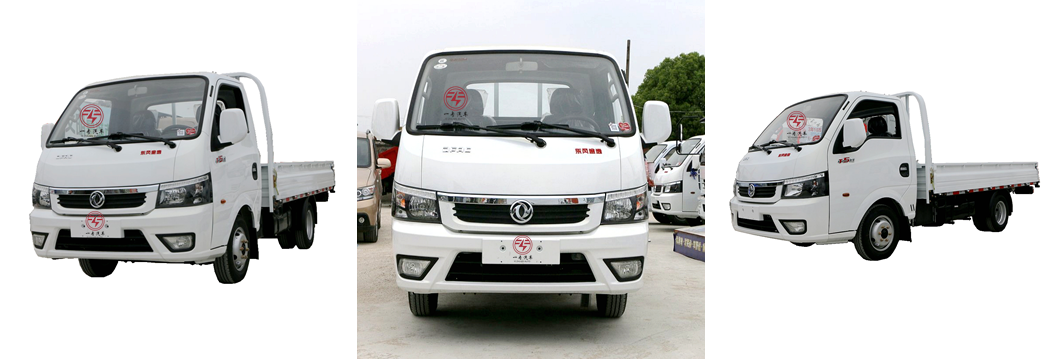

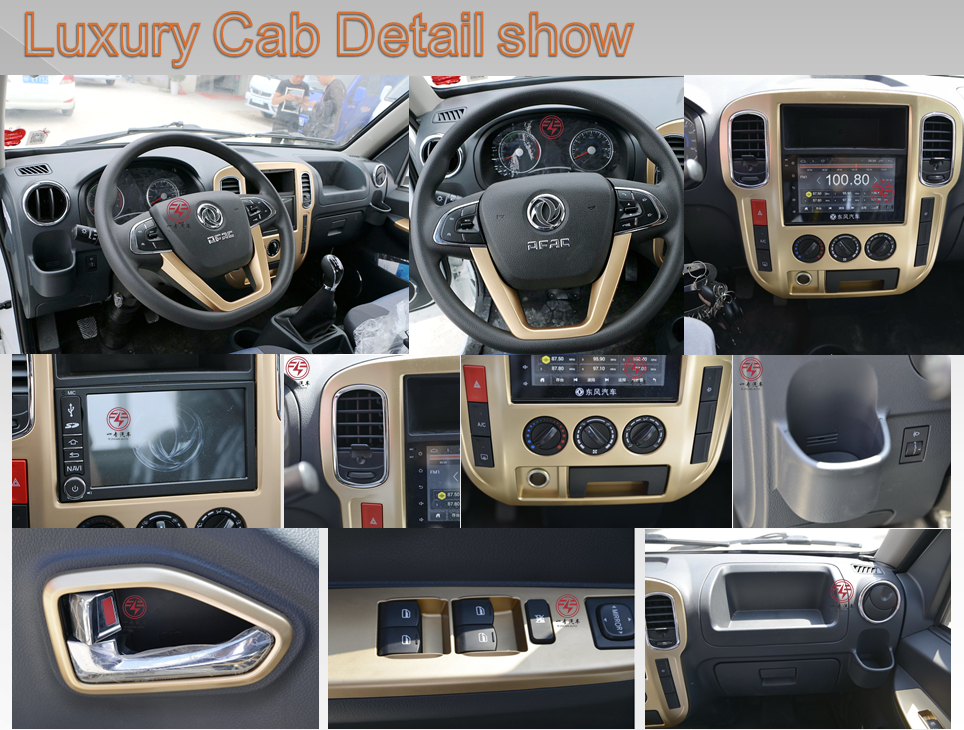

Dongfeng T5 Luxury cab 2/5 Seats mini small truck

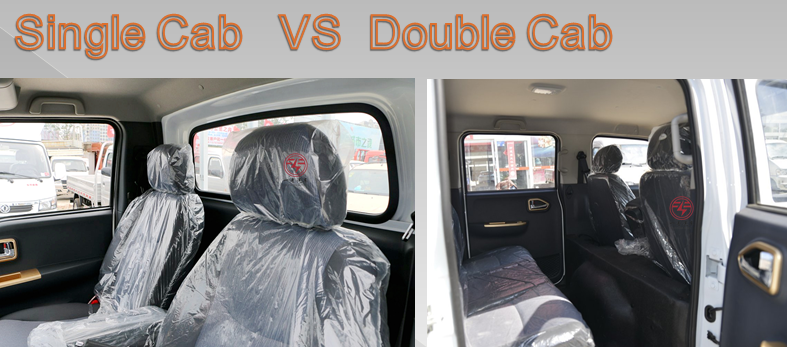

1. Double cab, 5 seats, large seating space, excellent comfort
2. Ingenious design of storage space, convenient to store different daily necessities in categories
3. The left and right headlights are connected to both sides of the U-shaped central grid, with standard fog lamps and cab sun visors
4. Fully equipped for safe driving
5. Beautiful appearance, streamlined design, reduce driving resistance
6. Sophisticated chassis design and production, selected materials, tops with multiple choices of cargo box/flatbed/platform/fence/box/van sizes
