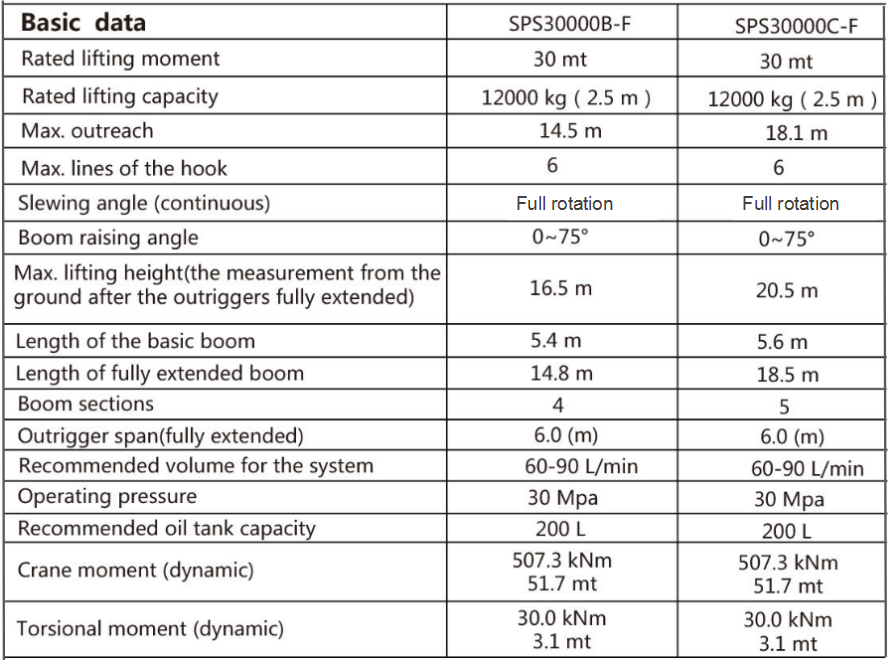

Crane brand: Palfinger Hoist ability: 12t
Working radius: 14.5/18.1m Hoist Height: 17.1m
Arm units: 4/5 Hoist Torque: 30T.m
Landing leg: front landing leg, back landing leg (selective assembling)
24小时咨询热线
+86-16607287878（Wechat/WhatsApp）
Support customization!
Can be customized according to your actual situation and needs of the engine, chassis, material, etc.
Manual outriggers are economical. Hydraulic outriggers are more convenient and more user-friendly. The back leg improves stability. Modular reserved interface, it is more convenient to select the rear leg. Innovative design of the outrigger protection structure to avoid scratches between the outriggers and the ground. The outrigger has a large span, good adaptability to the site, and stronger stability of the whole machine.
