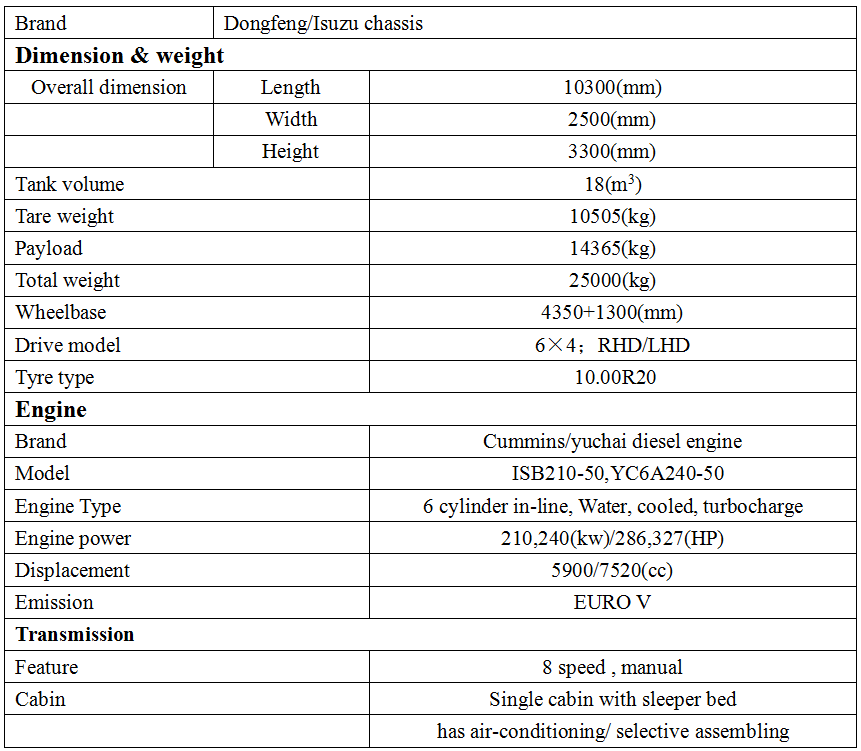

Tank volume: 18cbm Sprinkler width: 10-18m
Water gun ranges: 20-50m Fog gun ranges: 30-120m
Pump flow: 30m^3/h-70 m^3/h Tank material: carbon steel
Cummins diesel engine ISB210-50/Yuchai diesel engine YC6A240-50, 286/327Hp, Euro VI
24小时咨询热线
+86-16607287878（Wechat/WhatsApp）

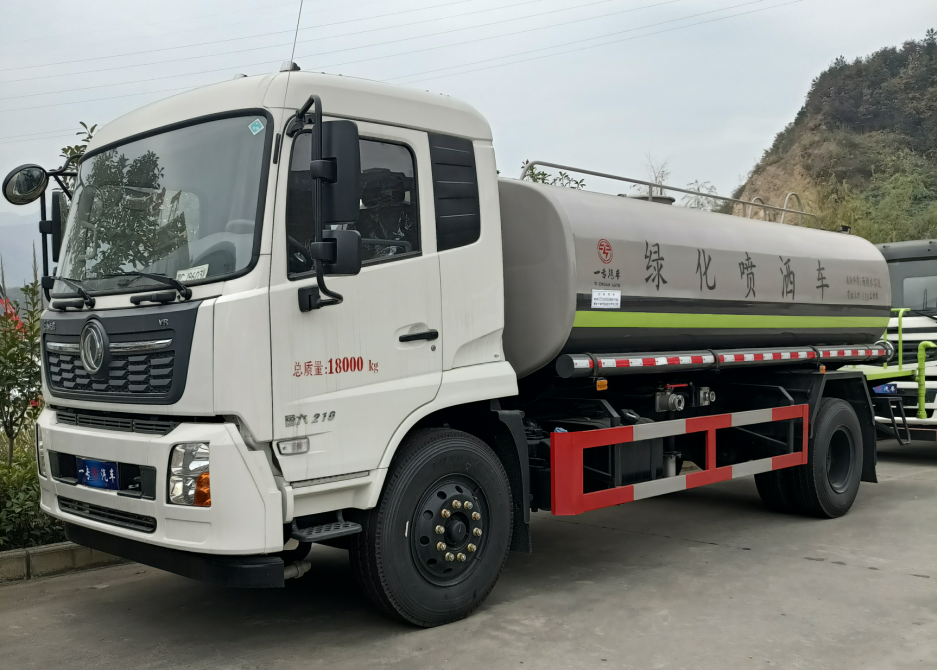

Use Dongfenghuashen EQ1250GLJ rear double bridge sprinkler chassis, can choose to carry Yuchai 240HP diesel engine or Dongfeng Cummins 210HP diesel engine, 4350+1300mm wheelbase, Shaanxi tooth Fast eight speed transmission, 10.00R20 steel wire tire, 5 tons of front axle,10 tons of double rear axle, with urea tank and exhaust purification system in line with the Euro V emission standard brick. Air brake, ABS, rotary, clutch power assist, air conditioning.
Fully functional, set irrigation, spraying, road maintenance, spray dust, anti-aircraft gun injection and other functions in one.
Support customization, can be customized according to your actual situation and needs of the engine, sprinkler size, material,etc.

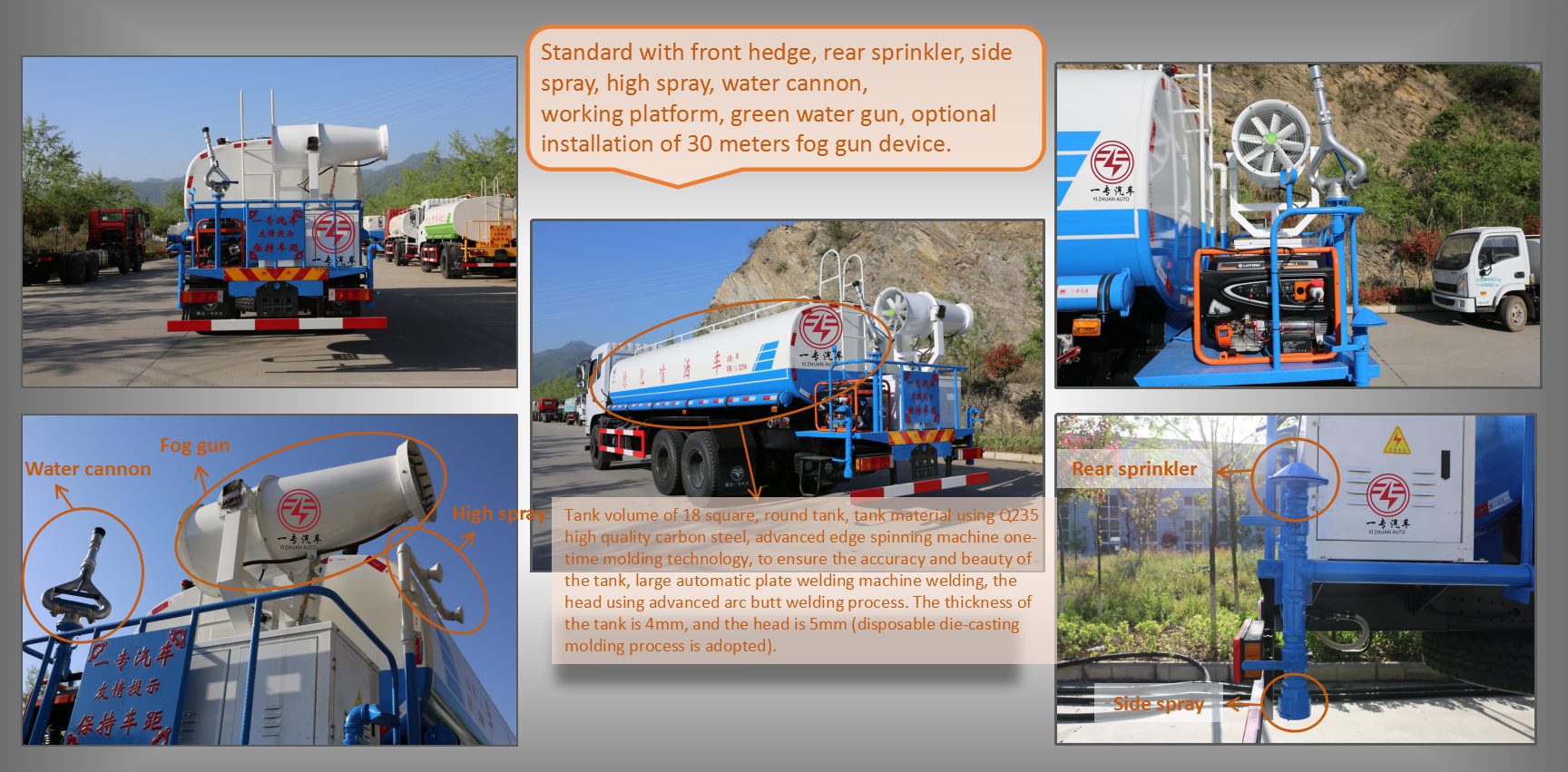

Front jet nozzle function display & High side shower function display.
Rear sprinkler function display & Side spray function display.
Introductions and effect display of water gun (fog gun).
Customized product:

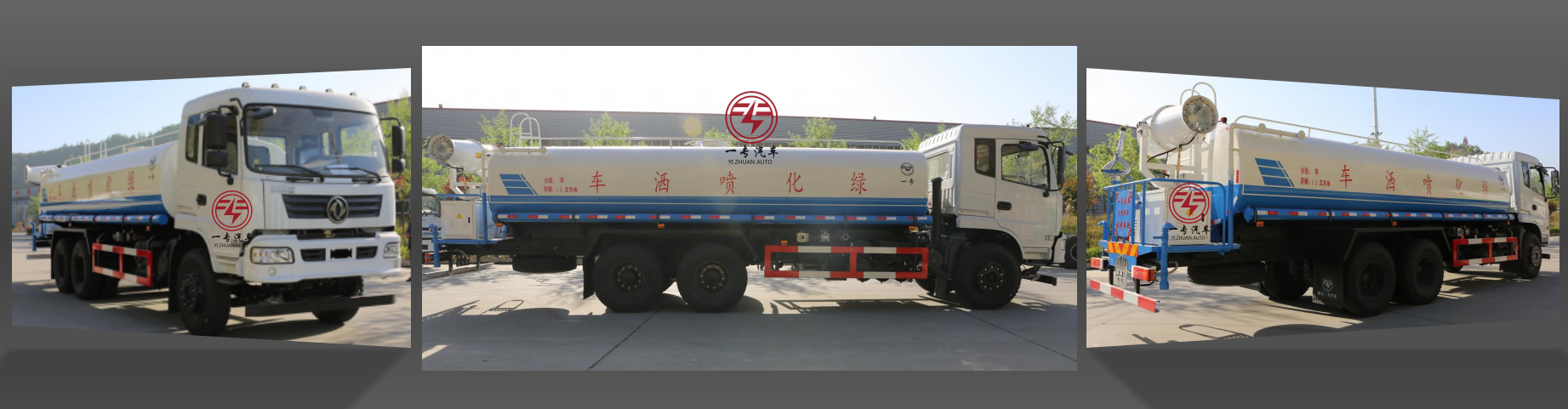

The same series of products are recommended(Click the picture to enter the product area):
